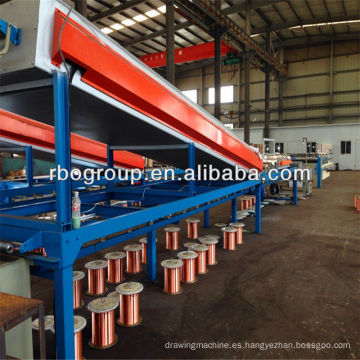

40H (40 cabezas/líneas) recocido y estañado máquina

machine type

40H

32H

24H

12H

number of wire (mm)

40

32

24

12

finished wire diameter (mm)

φ0.1-φ0.32

φ0.1-φ0.32

φ0.1-φ0.32

φ0.03-φ0.08

tinning speed(MPM)

300

300

300

300

send-out method

hairbrush wire placing

annealing method

tubular annealing

mode if wire receiving

torque motor 1.2-1.5N.M

torque motor 0.3-0.7N.m

mode of tin-plating

single-furnace hot dip(transverse plating) mould tin-scraping

single tinning oven with scrap dies

annealing length

4.5

4.5

4.5

2

spooler dimension

PT5-PT25

PT5-PT25

PT5-PT25

PT5

installed thermal power

64.5

64.5

64.5

24.5

installed dynamic power

12

10

9

3.5

total installed power

76.5

74.5

73.5

28

traversing control

decelerate motor,loading & unloading unaided traversing

L&R direction traversing

machine dimension

18800L×1600W×1900H

18500L×1600W×1900H

17900L×1600W×1900H

13000LX1350WX1530H

machine weight

6350

6250

5800

1800
